Cat 6 FTP Кабель (PVC)
400106
Новый товар

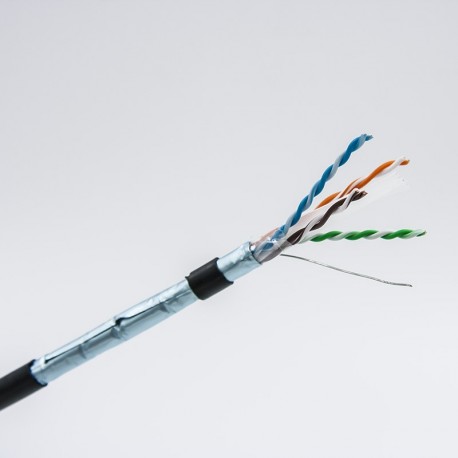

Category 6 Foiled PVC Cable manufactured and tested in accordance with the ISO 11801, EN 50173 and ANSI/TIA‐568‐C standards. Each cable consists of 8 colour coded polyethylene insulated conductors twisted together to form 4 pairs with varying lay lengths. Cable shielded with aluminium foil and polyester.
Category 6 cables are manufactured and tested to the Category 6 performance standards defined by the TIA, ISO and EN standards bodies. Actual performance far exceeds the required standard.
The cable is also compatible with Category 5 and 5e components.
Features and Benefits
- Tape design engineered for smaller overall diameter and ease of installation
- PVC outer sheath
- Central "X" filler
- Rip cord
- 23AWG conductor
- 100% tested according to ISO/IEC 11801, EN 50173-1
- Characterized and tested to 250MHz
- Positive PSACR up to 300MHz for future bandwidth requirements
- Unique product-specific packaging for ease of identification
- Every master reel is tested to ensure electrical performance compliance
- Print legend contains footage marking from 305M to 0M or 500m to 0m
- RoHS compliant
- ETL / EC Verified
- UL Listed
- 25-year DNS warranty
Ordering information:
| Code | Description | Package |
| 400106 | DNS FTP PVC Cat6 Cable | T305 |
Subject to change without notice
| Размеры | Box dimension 215 x 404 x 408 mm |
| Вес | 5 kg per 100m; 15 kg per 305 m box |
| Категория | Category 6 |
| Тип кабеля | Витая пара |
| Изоляция | PVC, 0.65 mm nominal thickness, Gray |
| Электромагнитная защита | AL Foil / Polyester |
| Стандарт огнестойкости | IEC 60332-1-1; IEC 60332-1-2 |
| Количество пар | 4 |
| Размер проводника | Solid Bare Copper AWG23, 0.575 mm |
| Диаметр кабеля | 6.5 mm ±0.2 mm |
| Дренажный провод | 0.4TC |
| Упаковка | T305 |
| Минимальный радиус изгиба | 4x overall diameter installed, 8x during installation |
DNS Warranty System
The DNS System Warranty provides a 25-year product applications warranty. The guarantee cover system and application performance according to EN50173-1:2002, ANSI/TIA/EIA-568-B.2:2002 and ISO/IEC 11801-2 at the time of proper signed application form. The warranty may be applied by the certified DNS Partner.
