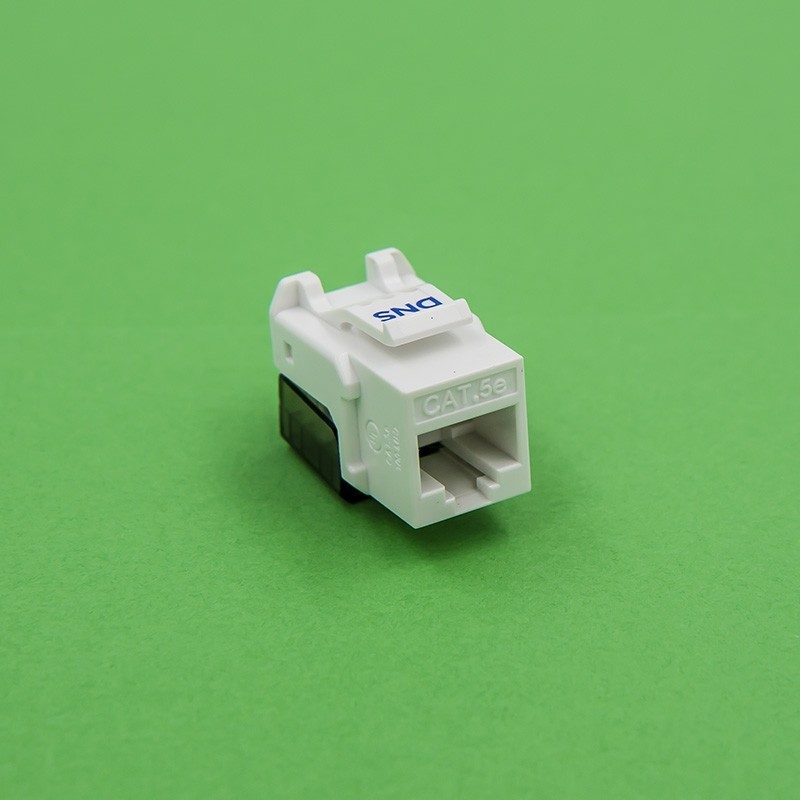

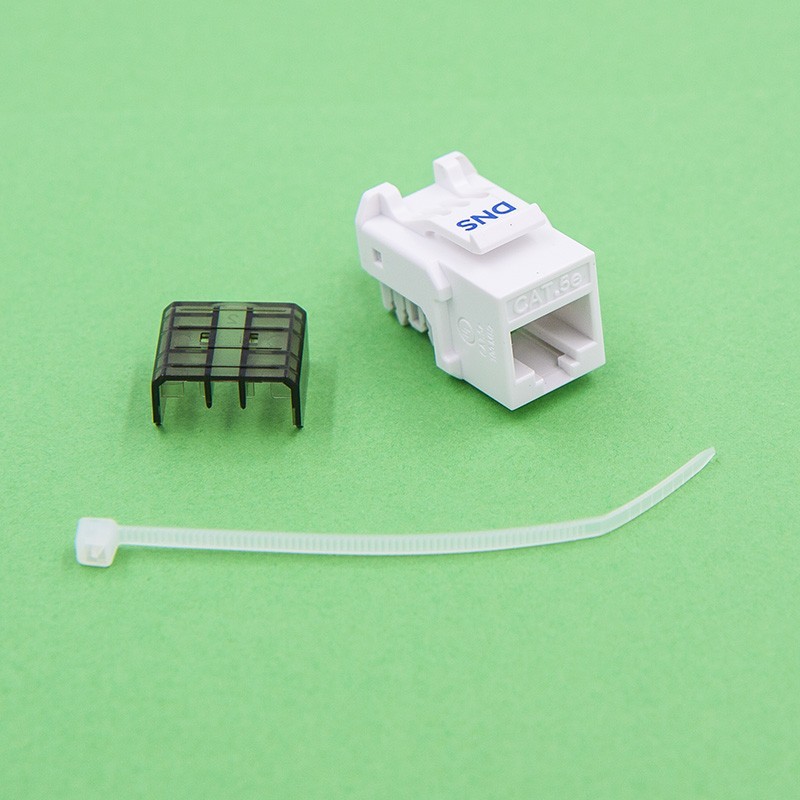

DNS Cat 5e UTP Keystone Jack T3 (valge)
400803
Uus toode
The DNS Cat 5e Keystone Jack is designed to snap into wall plates, patch panels, and surface connection boxes for quick, seamless deployment. Meeting and exceeding the international standard ISO / IEC 11801 and the ANSI/TIA-568-C.2 requirements, this RJ45 keystone jack provides the perfect solution for your Ethernet networks.
Category 5e keystones are manufactured and tested to the Category 5e performance standards defined by the TIA, ISO and EN standards bodies. Actual performance far exceeds the required standard.
The cable is also compatible with Category 5 components.
FEATURES
- EC Verified
- RoHS Compliant
- 3P verified
- Tool-less
- 90º angel
- 50U" Gold PLated
- 100% tested according to ISO/IEC 60512-27-100; ANSI/TIA 568-C.2
- 25-year DNS Warranty
- Easy preparation and installation
Ordering information:
| Code | Description | |
| 400803 | DNS C5e UTP Keystone T3, white |
Subject to change without notice
DNS Warranty System
The DNS System Warranty provides a 25-year product applications warranty. The guarantee cover system and application performance according to EN50173-1:2002, ANSI/TIA/EIA-568-B.2:2002 and ISO/IEC 11801-2 at the time of proper signed application form. The warranty may be applied by the certified DNS Partner.
| Töötingimused | -10 to +60ºC (ISO/IEC 11801; ANSI/TIA 568C.2) |
| Juhtmestik | T568A & T568B; 23-26AWG Solid Wire |
| Kategooria | Category 5e |
| Jacki korpus | ABS+PC UL94V-0 |
| Sisestamise jõud | 20N Max. (IEC60603-7-4) |
| Kinnipidamisjõud | 7.7 kg between jack and plug |
| Elutsüklid | 750 cycles min. (ISO/IEC 11801; IEC60603-7-4) |
| Elektrilised omadused | Current 1.5A max.; Voltage 150V |
| Dielektriline taluvuspinge | 1000VAC RMS 60Hz 1 min. |
