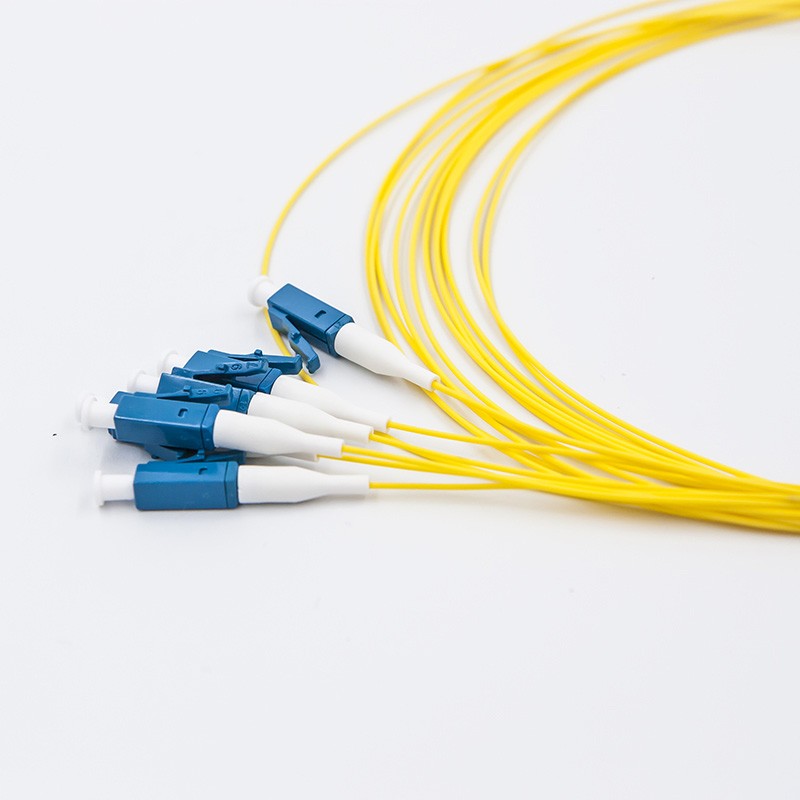

> >>Optical pigtail SM, LCU G.657, 1m
Optical pigtail SM, LCU G.657, 1m View larger

Optical pigtail SM, LCU G.657, 1m

330072

New product

DNS singlemode pigtails are equipped with ceramic ferrules and delivered with 900µm secondary coating. Pigtail is equipped with LC/UPC connector on one end.

More details

FEATURES

  • Zirconia Ferrules
  • 100% tested
  • 25 Year DNS Warranty
  • RoHS Compliant
  • Good Durability
  • Low Insertion Loss
  • Low Back Reflection Loss
  • High Temperature Stability
  • Good Exchangeability
  • 0.9mm O.D



PERFORMANCE OVERVIEW

DNS multimode pigtails are equipped with ceramic ferrules and delivered with 900um secondary coating. All pigtails are subjects for DNS 25 year warranty system.



 Ordering information

Code Description Length
330072 Fiber optic pigtail, SM, LC/UPC, G.657 1 m

Subject to change without notice

Operating conditions -40 to +85ºC
Storage conditions -40 to +85ºC
Connectors LC/UPC
Insertion loss ≤0.2dB
Return loss 55dB
Repeatability ≤0.1dB
Durability ≤0.2dB, typical change 1000 matings
Interchangeability ≤0.1dB
Tensile strength more than 10 kg
Pigtail length 1, 2, 4 m or custom length
Fiber type G652D in stock or G657A, B on request
Color сoding Blue Connector
Standards EN60794-1-23; EN60875-1:2012; Telecordia GR-326-CORE; EN50173

DNS Warranty System

The DNS System Warranty provides a 25-year product applications warranty. The guarantee cover system and application performance according to EN50173-1:2002, ANSI/TIA/EIA-568-B.2:2002 and ISO/IEC 11801-2 at the time of proper signed application form. The warranty may be applied by the certified DNS Partner.
