> >>DNS Optical patchcord OM3, 50/125, 2xLC-SC
DNS Optical patchcord OM3, 50/125, 2xLC-SC View larger

DNS Optical patchcord OM3, 50/125, 2xLC-SC

201106

New product

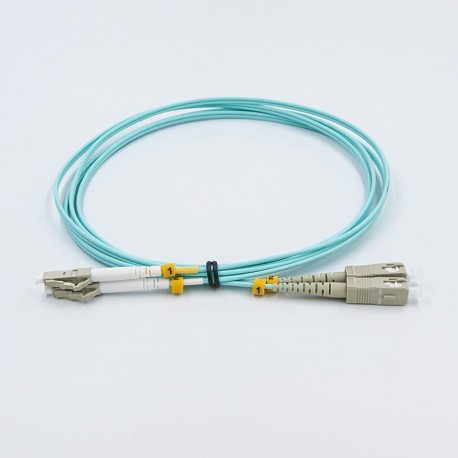

DNS Patch cord is made of two parallel sections of multimode fiber optic cable with a lengths of 1, 2, 3, 5, 10 and 15 meter, terminated on one side with two LC connectors and on other side with two SC connectors.

More details

DNS Patch cord is made of two parallel sections of multimode fiber optic cable with a lengths of 1, 2, 3 and 5 meter, terminated on two LC connectors and on other side with two SC connectors. Connectors feature simple matching (push-pull coupling with a snap) and rectangular cross-section allowing dense packing of the connectors on the panel.

The optical fiber used in the patch cord is OM3. It provides full compatibility with existing fiber-optic networks based on multimode fibers. The average fiber attenuation is 3.5 dB/km at 850 nm and 1.5 dB/km at 1310 nm. The optical fiber is reinforced by aramid fibers (Kevlar) and covered with PVC sheath.

FEATURES

  • Kevlar reinforced
  • Comes in standard with 2mm outer jacket.
  • All connectors are equipped with zirconia ferruls and conform to TIA/EIA568.3, Bellcore GR-02
  • Testprotocol comes with each item.
  • Bending radius: 30 mm



 Ordering information

Code Description Length
201106 DNS OM3 2xLC-SC, 50/125 1 m
201107 DNS OM3 2xLC-SC, 50/125 2 m
200125 DNS OM3 2xLC-SC, 50/125 3 m
200126 DNS OM3 2xLC-SC, 50/125 5 m
200448 DNS OM3 2xLC-SC, 50/125 10 m
200447 DNS OM3 2xLC-SC, 50/125 15 m

Subject to change without notice

Connectors LC (A, B) - SC (A, B)
Insertion loss ≤0.3dB
Return loss ≤25dB
Repeatability ≤0.1dB
Durability ≤0.2dB, typically change 1000 matings
Interchangeability ≤0.1dB
Tensile strength more than 10 kg
Patchcord length 1, 2, 3, 5, 10 and 15 meter
Fiber type 50/125, OM3
Color сoding Aqua / Gray connectors
Standards EN6079-1-23; EN60874-1:2012; Telecordia GR-326-CORE; EN50173

Warranty (EN)

DNS Warranty Program

Download (437.14k)

DNS Warranty System

The DNS System Warranty provides a 25-year product applications warranty. The guarantee cover system and application performance according to EN50173-1:2002, ANSI/TIA/EIA-568-B.2:2002 and ISO/IEC 11801-2 at the time of proper signed application form. The warranty may be applied by the certified DNS Partner.
